How to measure a box correctly

You need custom packaging. You know the size, material, print and quantity, and the only thing missing is the exact dimensions? Want to make sure the finished packaging fits your products perfectly? Then this article is for you.

How to measure a box correctly

Measure the internal dimensions

What matters is the space your product goes into, which is why box sizes are given as internal dimensions. Measure the longest, widest and tallest points of the product, including any protrusions, handles or connectors. Measure an irregularly shaped product in the position it will sit in the box.

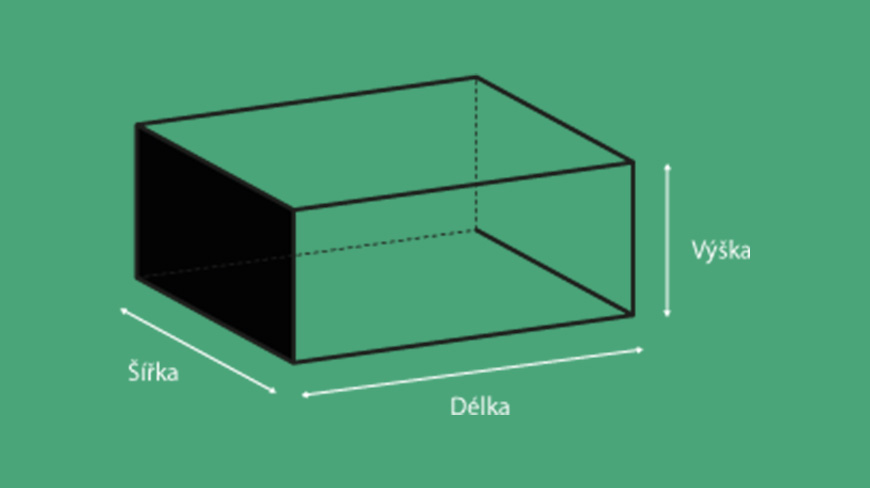

Keep to the order length × width × height

Always state the dimensions in the same order, in millimetres:

  • Length (L) is the longer side of the box opening.
  • Width (W) is the shorter side of the opening.
  • Height (H) runs from the base to the lid, perpendicular to the opening.

The order determines where the opening is and how the box is filled. Boxes of 400 × 300 × 200 mm and 200 × 300 × 400 mm have the same volume, but each is filled from a different side.

Allow for inserts and void fill

If the product is held in place with foam, dividers or void fill, add the thickness of the insert on every side. Without an insert, allow only a small clearance so the product does not move but is still easy to put in and take out.

Internal and external dimensions are not the same

The external size is larger by the thickness of the walls, which depends on the material. Three-layer corrugated board is thinner, five-layer is thicker and stronger for heavier goods. If you need to keep to an external size, for example because of a pallet, shelving or a carrier's size limit, say so in your inquiry. We will then work out the internal dimensions for the chosen board.

What to include in your inquiry

  1. Internal dimensions in the order L × W × H, in millimetres.
  2. Product weight and method of shipping.
  3. Box type, for example die-cut or flap box, if you know it.
  4. Print requirements and quantity.
  5. A photo or drawing of the product.

Not sure about the dimensions? Send us the product or its drawing. We will design the packaging, make a prototype and test it before we quote.
